SIMADRE 5200D 50A PLASMA CUTTER 200A TIG ARC MMA WELDER WITH FOOT PEDAL
BRAND NEW SIMADRE CT5200D 3IN1 MODEL !!!
DUAL VOLTAGE 110V & 220V !!!
WITH HIGH-PERFORMANCE SG-55 60A TORCH & A HIGH QAULITY FOOT PEDAL !!
BRAND NEW IN THE BOX with ACCESSORIES and FREE CONSUMABLES!
THREE MACHINES INTEGRATED IN ONE
SIMADRE POWERFUL 200 AMP TIG, 200 AMP ARC/MMA and 50 AMP PLAS MA CUTTER !!!
• Foot Pedal Ready
• 200 Amp Tig Torch
• 200 Amp Arc/MMA Welder
• Digital Current Display
• SG-55 High Performance Cutting Torch
• Automatic sensing of incoming power source voltage and frequency 120V/240V-50/60HZ (functions between 90 & 260 volts.)
• Works in both 50 and 60 Hz with operating air pressure of 70 psi @ 4 cfm.
• Machine is equipped with a large cooling fan and is thermostatically protected for a longer life span. See Picture Below !
• Advanced inverter technology means high cutting and welding performance.
• The newer semiconductor circuits in these machines are extremely well-designed. With reasonable care, your welder will provide you with many years of trouble-free service
• Plasma Cutter is 3/4" rated with 1" severance cuts
• Tig Welder has a 5/16" weld thickness and a high frequency non-contact start.
• Arc/MMA Welder has a 3/16" weld thickness
• CE, CCC, CSA and ISO-9001 certification
Specifications:
Input voltage - AC 110/220±15% 50/60Hz
Input Power Capacitance - 7.1 kva
No-load loss(W) - 40
Duty cycle (%) - 60
Power factor - 0.93
Efficiency (%) - 85
Insulation class - B
Protection class - IP21
Input current(A) TIG - 21 MMA - 32 CUT - 28.6
Rated output current TIG - 200A MMA - 200A CUT - 50A
Current range TIG - 15-200 MMA - 15-200 CUT - 20-50
No –load voltage(V) TIG - 62 MMA - 62 CUT - 250
Cut thickness(mm)- 1-16
Arc-leading TIG - HF vibrate MMA - Touch CUT - HF vibrate
It comes with:
• Plasma cutting torch with 16.5 ft (5m) hose.
• Tig Welding Torch with 11 ft hose (with long and short caps)
• Ground cable (9 ft) with clamp.
• Stick (ARC) Holder

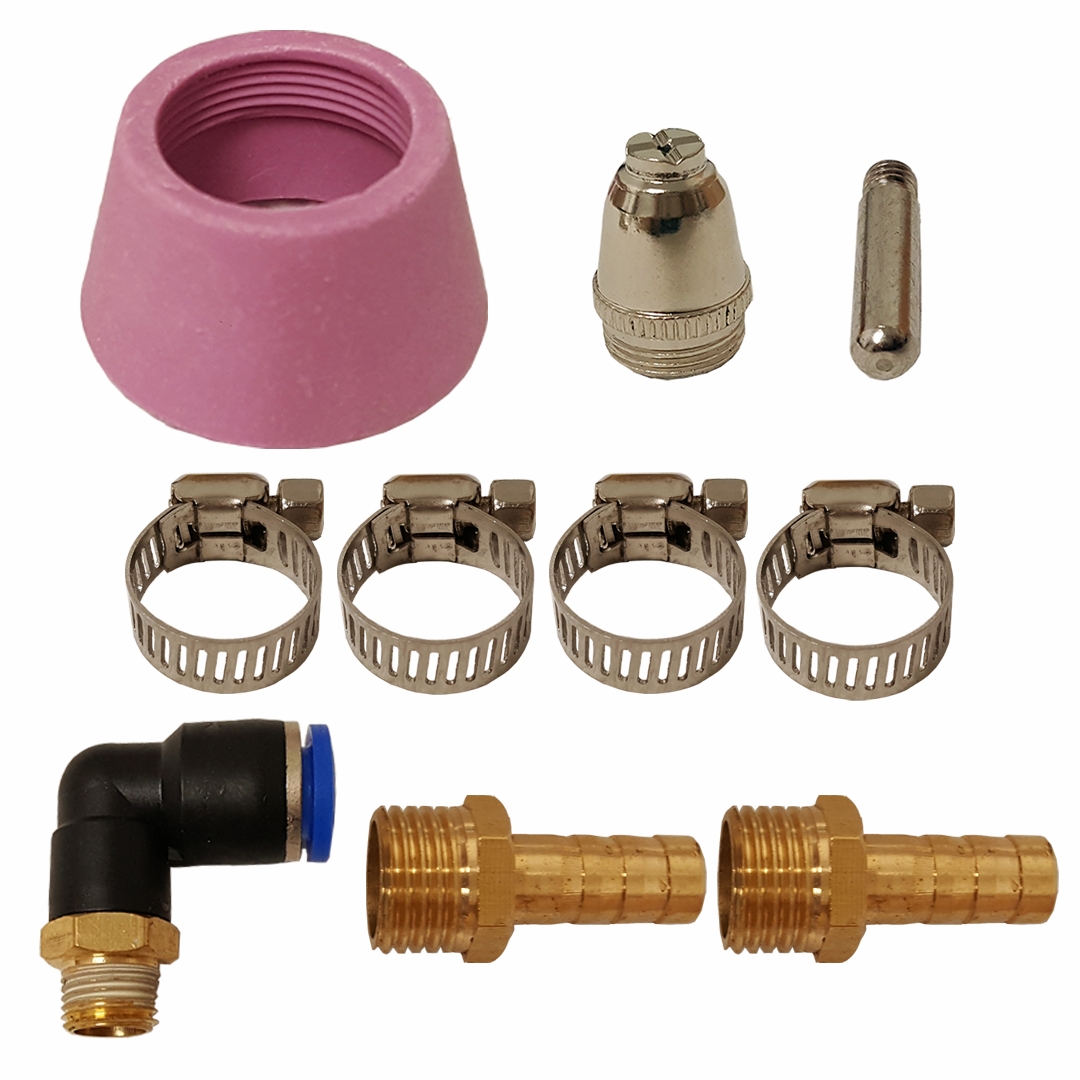

• Initial 60A SG-55 Consumables
• User Manual
• You shall provide 60~70 psi air supply, 110v or 220v power plug for plasma cutting
• You shall provide argon regulator, tank for tig welding
