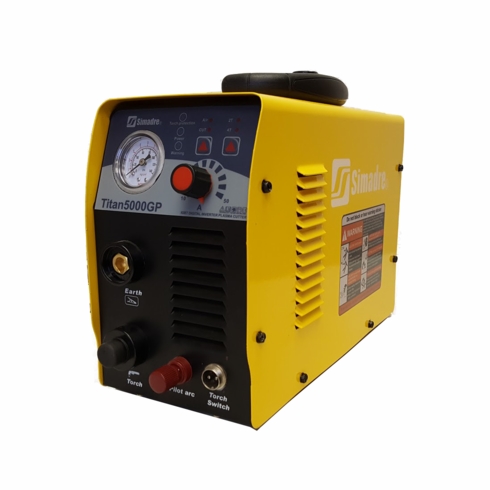

SIMADRE TITAN 5000GP 50A IGBT DIGITAL PILOT ARC 110/220V PLASMA CUTTER 25mm MAX CUT
Simadre Titan 5000GP IGBT DIGITAL Pilot Arc 110/220V Dual Voltage Plasma Cutter - Brand New Design
20 mm Clean Cut
Equipped with a highly performative cutting torch BEST!!!
Features
Latest IGBT inverter technology
High quality Non HF torch
Built-in air regulator with preset air pressure
Suitable to cut all electrically conductive materials
Light and compact
Tolerant to variable power supply
Technical Parameter
230v 45 Amps - 1” Cut on Steel
120v 35 Amps - 5/8” Cut on Steel
Power Supply/Phases (V-Ph)
240V +/- 15% 120V +/- 15%
Duty Cycle @ 78F (25.5C)
60% @ 45Amps 60% @ 35Amps
Rated Power (KVA)
5.5 4.25
Output Current Range (A)
20-45 20-35
Rated Output Voltage (V)
98 96
Efficiency (%)
85
Insulation Class
H
Protection Class
IP12S
Plasma Arc Starting
Pilot Arc (Non HF)
Air Flow Pressure (MPA)
.5 (75 psi) .38 (55 psi)
Air Flow Rate (CFM)
6.70
Clean Cutting Thickness (inch)
4/5” (20mm) 4/9” (12mm)
Cutting Thickness Severance (inch)
1” (25mm) 5/8” (16mm)
Dimensions (inch)
17.5” x 7.1” x 12”
Weight (lb)
20
Shipping Weight (lb)
30
Warranty
1 year, machine only
Package Includes
Cutting Torch Ground Clamp and Cable Manual
Customer must provide 110V or 220V power plug Shipping to outside of the USA mainland is not free and we have to charge extra $95 to PR, AK, HI, GUAM, VI, Military Station etc.
