SIMADRE MIG200 200 AMP IGBT MIG/TIG/MMA/ARC 220V VOLTAGE WELDER
SIMADRE MIG200 ADVANCED IGBT INVERTER TECHNOLOGY, 220V MIG/TIG/MMA/ARC Welder
One Year Warranty on the Machine
1. IGBT module technology
2. 220v voltage, fan-cooled, fixed MIG gun, over-heat protection.
3. MIG/MAG welding process with gas-less flux or gas shielded welding wires.
4. ARC is easy to be started, it is very stable, and little spatter.
5. Continuous adjustment on welding current in large scale.
6. Good welding performance and high quality.
7. Small splash, great penetration, easy and simple to operate and aesthetic appearance of weld sea
8. DC Inverter TIG/MMA/MIG Machine
9. HF Arc-starting, TIG welding lightly with function of arc force adjustment .
10. Single-phase , portable , fan-cooled wire welding .
11. Be able to weld mild steel , stainless steel , copper and Titan ,etc .
12. Be able to use all kinds welding rod , such as acid...
13. Be able to use aluminum is available on request .
APPLICATION:
1.Application to automobile manufacturing, engineering machinery, shipbuilding industry, aviation and agricultural machinery ,etc
2.Apply to general carbon steel, carbon steel, low alloy steel, conducting butt welding, lap welding and fillet welding of all space position.
3.Apply to :0.8-1.2mm welding wire, fixed location welding, various kinds of thin thickness of the common parts, frame and auto industry.
4.Compact, light weight, little splash, portable, Compatible Power Generator, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.
Technical Specifications:
Item: MIG-200
Power voltage (V): 230
Frequency(HZ): 50/60
Max absorbed power(KVA): 6
Absorbed power 60%(KVA): 2.5
Power factor: 0.9
Solid wire diameter(MM): 0.6-0.8
Flux wire diameter(MM): 0.8-0.9
Max no-load voltage output(V): 37
Current range(A): 60-180
Max current output: 140@30%
Insulation class: H
Package included:
1. MIG Gun
2. Lift Tig Torch

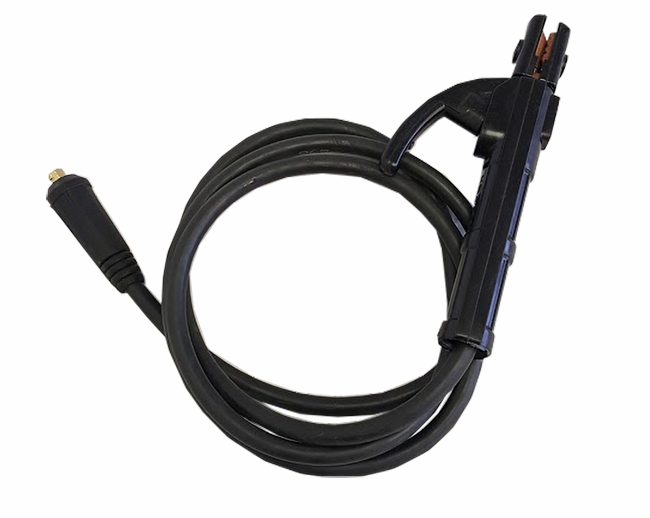

3. Stick holder
4. Ground clamp
5. Shipping Size: 24x15x21" 65 lbs
Customer must provide 220V Power Plug
Shipping to outside of the USA mainland is not free and we have to charge extra $150 to PR, AK, HI, GUAM, VI, Military Station etc.
