SIMADRE 520DP 110/220V PILOT ARC 50AMP CUTTER 200A TIG ARC MMA WELDER
Simadre 520DP Multi-Process 3-in-1 Dual Voltage 110V/220V 50A Pilot Arc Cutter and 200A TIG/ARC/MMA Welding Machine.
520DP CUTTING AND WELDING DEMONSTRATION: https://www.youtube.com/watch?v=aDbhSLKureI
Three machines integrated into one
• Foot Pedal can be ordered separately
• 200 Amp Tig Torch
• 200 Amp Arc/MMA Welder
• Digital Current Display
• High Performance Cutting Torch
• Automatic sensing of incoming power source voltage and frequency 120V/240V-50/60HZ (functions between 90 & 260 volts.)
• Works in both 50 and 60 Hz with operating air pressure of 70 psi @ 4 cfm.
• Machine is equipped with a large cooling fan and is thermostatically protected for a longer life span. See Picture Below !
• Advanced inverter technology means high cutting and welding performance.
• The newer semiconductor circuits in these machines are extremely well-designed. With reasonable care, your welder will provide you with many years of trouble-free service
• Plasma Cutter is 3/4" rated with 1" severance cuts
• Tig Welder has a 5/16" weld thickness and a high frequency non-contact start.
• Arc/MMA Welder has a 3/16" weld thickness
• CE, CCC, CSA and ISO-9001 certification
Specifications:
Cutting Thickness:
· 3" Per minute at 1" Steel (Severance Cut)
· 7" Per minute at 3/4" Thick Steel
· 17" Per minute at 1/2" Thick Steel
Input voltage: AC 110/220±15% 50/60Hz
Input Power Capacitance: 7.1 kva
No-load loss(W): 40
Duty cycle (%): 60
Power factor: 0.93
Efficiency (%): 85
Insulation class: B
Protection class: IP21
Input current(A): 21 32 28.6 (TIG MMA CUT)
Rated output current: 200A 200A 50A
Current range: 15-200 15-200 20-50
No –load voltage(V): 62 62 250
Cut thickness(mm): - - 1-16
Arc-leading: HF Touch PA
Unit size: 21x8x11"
Unit weight: 32 lbs
Package weight: 55 lbs
Package Includes:
• Pilot arc cutting torch.

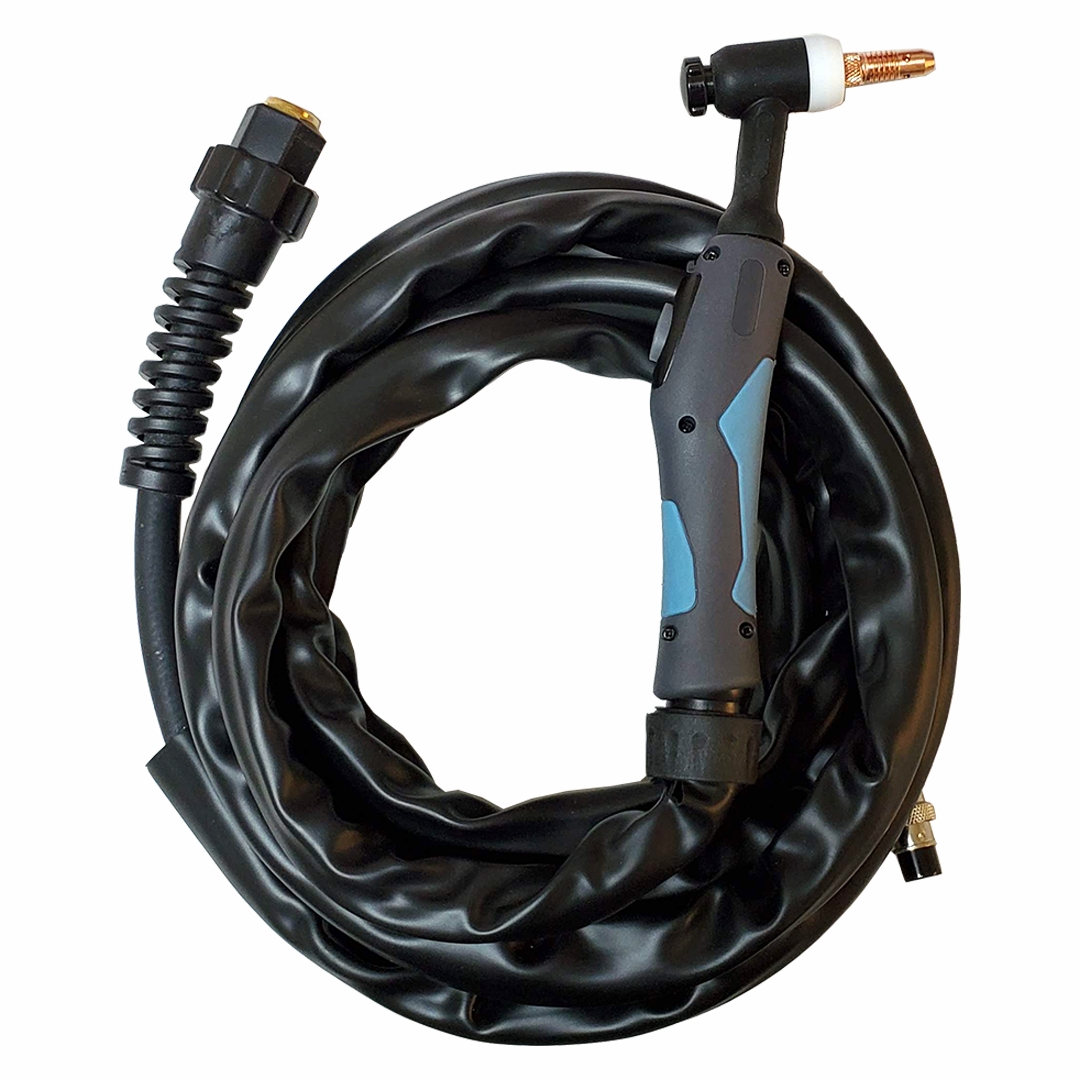

• TIG Welding Torch (with long and short caps)
• Ground cable with clamp.

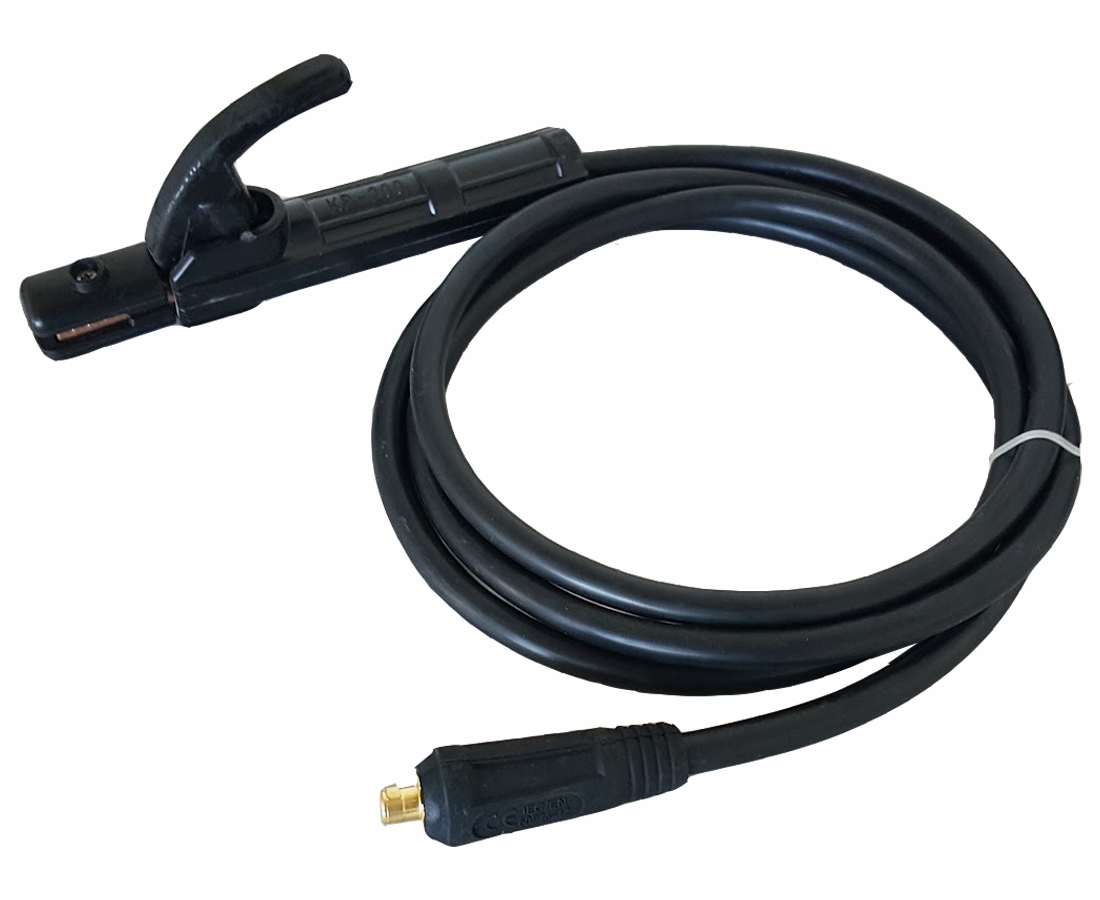

• Stick (ARC) Holder
• 15 Consumables
• User Manual
• Buyer needs to provide 60~70 psi air supply, 110v or 220v power plug for plasma cutting
• Buyer needs to provide argon regulator, tank for TIG welding
Shipping to pr, ak, hi, guam and military stations outside usa will be charged extra per the location.
