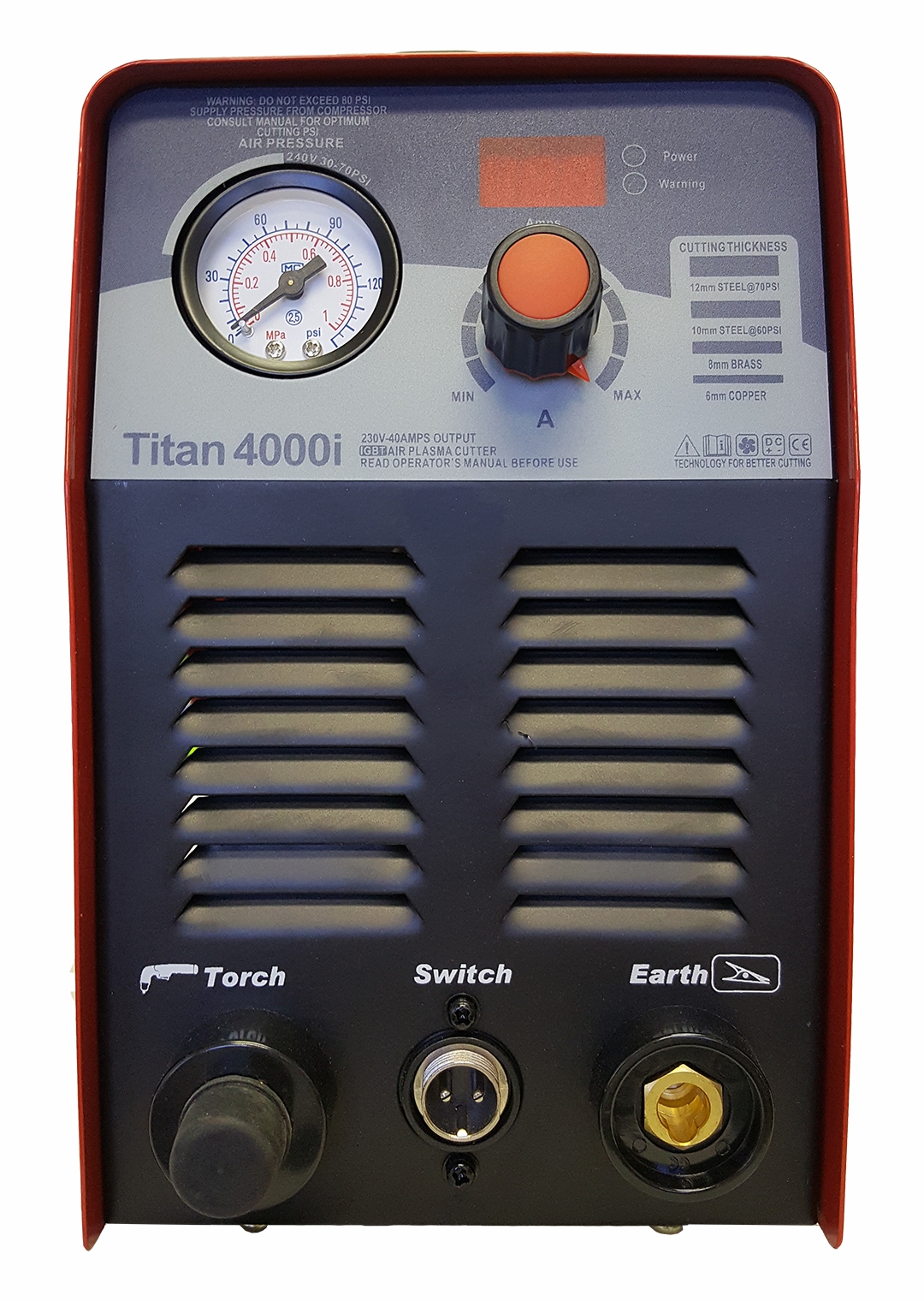

SIMADRE TITAN 4000i 40 Amp 220V Plasma Cutter - UP TO 13MM CUT
BRAND NEW ENHANCED MODEL IGBT Technology with High-Performance New Handle Style Cutting Torch. It comes with 1 year warranty on the machine.
DIGITAL DISPLAY IGBT TECHNOLOGY AND CSA /CE APPROVED
It is a Brand New TITAN 4000i 220 VOLTAGE 40 Amp Plasma Cutter with High Performance Cutting Torch.
SIMADRE cutters are very stable machines, please look up all the excellent feedbacks we receive from our customers on our cutters.
This Unit is portable and operational on 220v voltage. This machine weights only 17 lbs and the box size is approximately 15 inches Length x 6 inches width x 12 inches height. This machine is brand new and fully tested before shipping which assures that you do not receive a DOA unit, so you will find that the package has been opened for machine testing purposes.
Affordable: In terms of the quality and performance, it is similar as other well-known cutters. But the price is much lower than those machines.
Portable: This machine comes with torch and ground clamp and cable, air filter/ regulator and basic consumables.
The newer semiconductor circuits with IGBT technology so components in this machine are designed quite well. Cooling system is using advanced Germany equipment. With reasonable care it should provide many years of trouble-free service.
After all, this machine is powerful and well-equipped with same functions as other brands in the market!!!
Important New Features:
Better controlling mechanism
Digital Display on Panel
PAPST Advanced German Cooling System
Cutting Thickness: 10 mm Good Face Cut, 11-13 mm Max Cut
Technical Specs
Input power voltage V AC220±15% Rated input power capacity KVA 4.2 Input voltage frequency Hz 60 No-load voltage V 220 Output current range A 10-30 Rated output voltage V 85 23A 100% Duty-cycle (25℃) % 25A 60% 30A 35% No-load loss W 36 Efficiency % 85 Power factor cosφ 0.76 Insulation class B Arc-starting Touch Weight Kg 4.2 Size mm 290x135x210 Air pressure PSI 70-80 Protection class IP21S Work with performance mm 13
Package Includes Plasma Cutter - Inverter Unit, Ground Cable & Ground Clamp, Torch with Hose, Electrode, Nozzle, Air Filter/Regulator, Hose, Clamps, Mounting Bracket, and Owner Manual Users need to prepare own air compressor and 220V power plug
Shipping to PR, AK, HI, Guam and military stations outside USA will be charged extra per the location.
